OIL EXTRACTION MACHINE / OIL MILL
/ COOKING OIL MACHINE
AUM cooking oil machinery is ideally suitable to extract
and produce oil from any kind of oil seeds such as peanut /
groundnut, sesame, copra, linseeds, sunflower, castor seed,
cotton seed, palm kernel etc. Cooking oil machinery consists of
oil expeller, cooking kettle, steam boiler, cracker for seed,
filter press, elevator and conveyor for handling the raw
material and oil cake, accessories and spares. Machinery
available at small scale and big scale as per buyer's need.
AUM OIL EXPELLER
* Aum expelle ris used to extract oil from any kind of oilseeds.
* The exceptionally sturdy construction of our expeller ensures
a trouble free utilization also in case of longer operation and
under tropical conditions.
* Design is such that the press is easy to handle and that
nearly all oilseeds and nuts may be processed.
* For operating our expeller especial training is not necessary
as
our expeller is very handy to use.
* We have fitted the high quality gears and bearings for smooth
and noiseless running . Pinions are made from high grade forged
steel.
* In cooking kettle, you can cook the seeds properly. Cooking
kettle material is also high grade quality of mild steel.

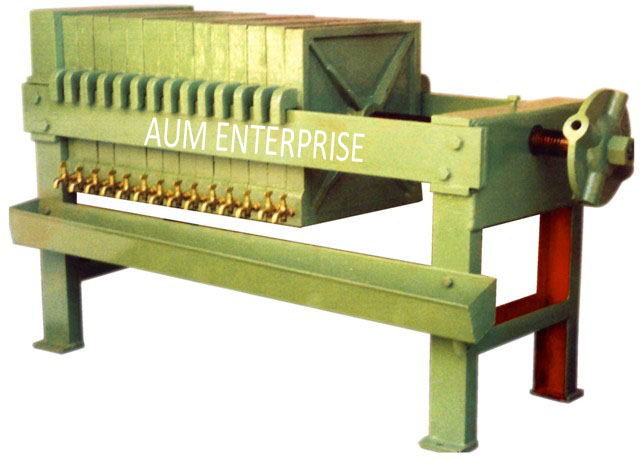

FILTER PRESS
* The liquid to be filtered is pumped into the press through
a centre hole and it fills the space between each pair of filter
cloth, and passes through the cloth into the grooves and further
to the outlet hole at the bottom of the plate.
* Gun metal pet cocks are fitted in the holes of the plates.
A tray is provided under the cocks for collection of filtered
liquids.
* AUM Filter press is useful to chemical and oil industries for
filtration of liquids. It consists of a series of chambers.
STEAM BOILER
* Boiler is vertical type boiler made of high quality tested
material with compact design. Sturdy and robust construction to
generate steam quickly and economically.
* Heat resisting cast iron furnace is provided with draft
control arrangements for maximum utilization of fuels.
* Plunger pumps are available for feeding the boiler i.e.
manually operated.
* Capacity of the boiler provide after knowing the capacity of
expeller.
* Our boiler is ideal for oil mills, rice mills, rubber,
industry,
food preservation industries.
* Husks and any agriculture waste or wood can be used as fuel in
the boiler.
We can supply
* Groundnut Decorticator for seperate out husk and kernel
* Copra cutter for making small chips
* Sunflower / Soya Bean Cracker
GENERAL OIL OUTPUT FROM DIFFERENT OIL SEED
SESAME
48 - 50%
GROUNDNUT
38 - 30%
PALM KERNEL
33-35%
RAPESEED
33-35%
MUSTARD
33-35%
LIN SEED
40-42%
SOYABEAN
14-16%
SUNFLOWER
28-30%
CASTOR SEED
3840%
COTTONSEED 12
to 13%
12 to 13%
COPRA
58-60%
CANOLA
30-32%
JATROPHA
28-30%
* Oil output also depends in the oil
content in the oil seed
which you use for crushing
For further kindly send your query to our email : cmdetroja@gmail.com
